Product Overview

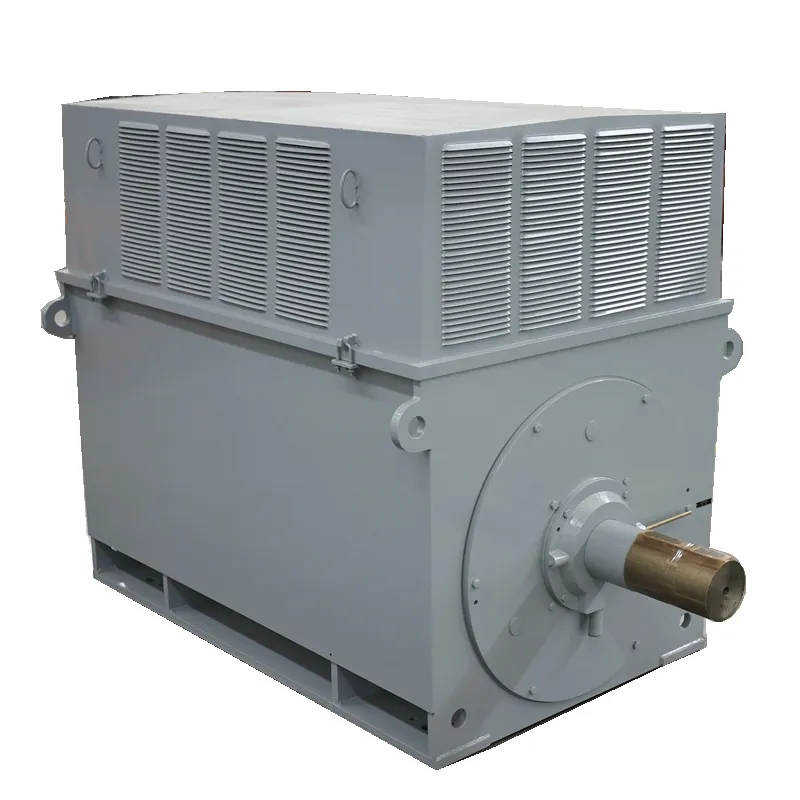

CHANGLI MV motors are designed for particularly tough and extreme industrial requirements. They are highly efficient, extremely robust, durable and easy to maintain
Available as MV squirrel cage motors and MV slip ring motors
All types of cooling and protection classes
Customized special constructions for even the most onerous applications
Identically interchangeable replicas of existing or obsolete motors
Offer built in adaptability for existing foundations
Production according to ISO 9001
High load capacity, high torque availability and long service life
High efficiency
Low operating and maintenance costs, with high MTBF performance
Also available for use in the most aggressive atmospheres
Technical Parameters
Power range: up to 20 MW
Voltage range: up to 13,8 kV
Shaft height: 355 - 1000 (mm)
Pole number: 2 – 24
Cooling: IC01, IC31, IC611, IC616, IC666, IC81W, IC86W
Protection: IP23, IP24(W), IP55 up to IP66 (optional)
Operating: DOL, VSD
Operating environment: Safe area, hazardous area
Core applications:
Pumps, Fans, Blowers, Compressors, Conveyers, Mills, Thruster
