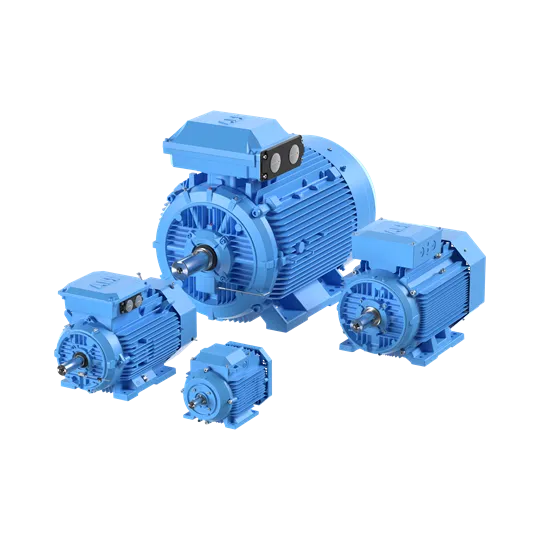

Discover unmatched safety with Changli's IEC low voltage smoke extraction motors
Smoke extraction motors play a critical role in keeping tunnels safe. In the event of a tunnel fire, lives depend on the ability of extraction fans – and the electric motors driving them – to disperse toxic fumes and smoke quickly and efficiently. Smoke extraction motors must be capable of withstanding the high temperatures generated in fire zones and continue to work reliably under these extreme circumstances.
Product Overview
Smoke extraction motors are typically used in two types of applications - jet fans and axial fans - for both comfort ventilation and extreme cases by fire.
Tunnels
Single and multi-storey shopping malls
Single and multi-storey industrial buildings and warehouses
Stairways
Enclosed car parks
Theaters
Other locations to mitigate the effects of a fire
Technical Parameters
Key features
Smoke extraction motors are designed for securing safety, working reliably and efficiently in tunnels.
Safe - Dual purpose secures fresh air by comfort operation and in the event of fire supporting safe evacuation. Changli smoke extraction motors are compliant with fans according to EN norms.
Reliable - Tunnels ensure vital transport connections, demanding 100% reliability. Our motors are designed to withstand high temperatures and are available with wide range of options and solutions.
Efficient - High efficiency motors up to IE4 efficiency class available.
Tested with fan according to EN 12101-3 for operation at 400°C 120 min, 300°C 60 min, 250°C 120 min, 200°C 120 min
Frame sizes 160 to 450, up to 1000 kW
Extended cable with protective conduit and remote terminal box
Flexible cabling solutions, halogen free materials
Both horizontal and vertical mountings
IP55 protection as standard, IP66 as option
Insulation class H
Temperature rise class B, F
Cooling IC411 as standard, IC418 as option
Wide range surface treatment and corrosion protection options
Efficiency classes IE2, IE3 and IE4
